You are here: Products > Rotary Excavation Bit

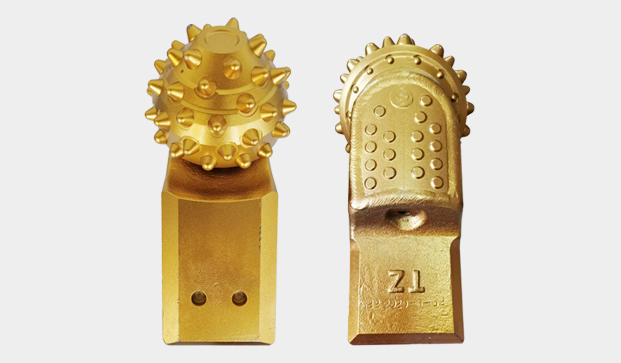

LX617RE：
■ Applicable formation: Class II, III and IV surrounding rocks, Natural Compressive Strength of Formation 80-120 Mpa, high compressive strength, medium-hard, thick hard interbeds, such as hard shale, limestone, sandstone, dolomite, gneiss, conglomerate, etc. ■ Product features: Cutting teeth are elongated conical spherical teeth, and the outer row is high strength spherical teeth. O-ring rubber seal, new bearing system, new grease storage compensation pressure balance system. ■ Recommended drilling pressure：200KN~350KN
LX617RG：| 開挖直徑（m) | 刀盤轉(zhuǎn)速（rpm/min) | 安裝牙輪刀片數(shù)量 |
| 0.8-1.5 | 12—16 | 6—12 |
| 1.5-2 | 10—12 | 10—14 |
| ≥2 | ≤10 | ≥4 |
| 開挖直徑（m) | 刀盤轉(zhuǎn)速（rpm/min) | 安裝牙輪刀片數(shù)量 |
| 0.8-1.5 | 12—16 | 6—12 |
| 1.5-2 | 10—12 | 10—14 |
| ≥2 | ≤10 | ≥4 |
